DIGITAL ICP® USB SIGNAL CONDITIONER

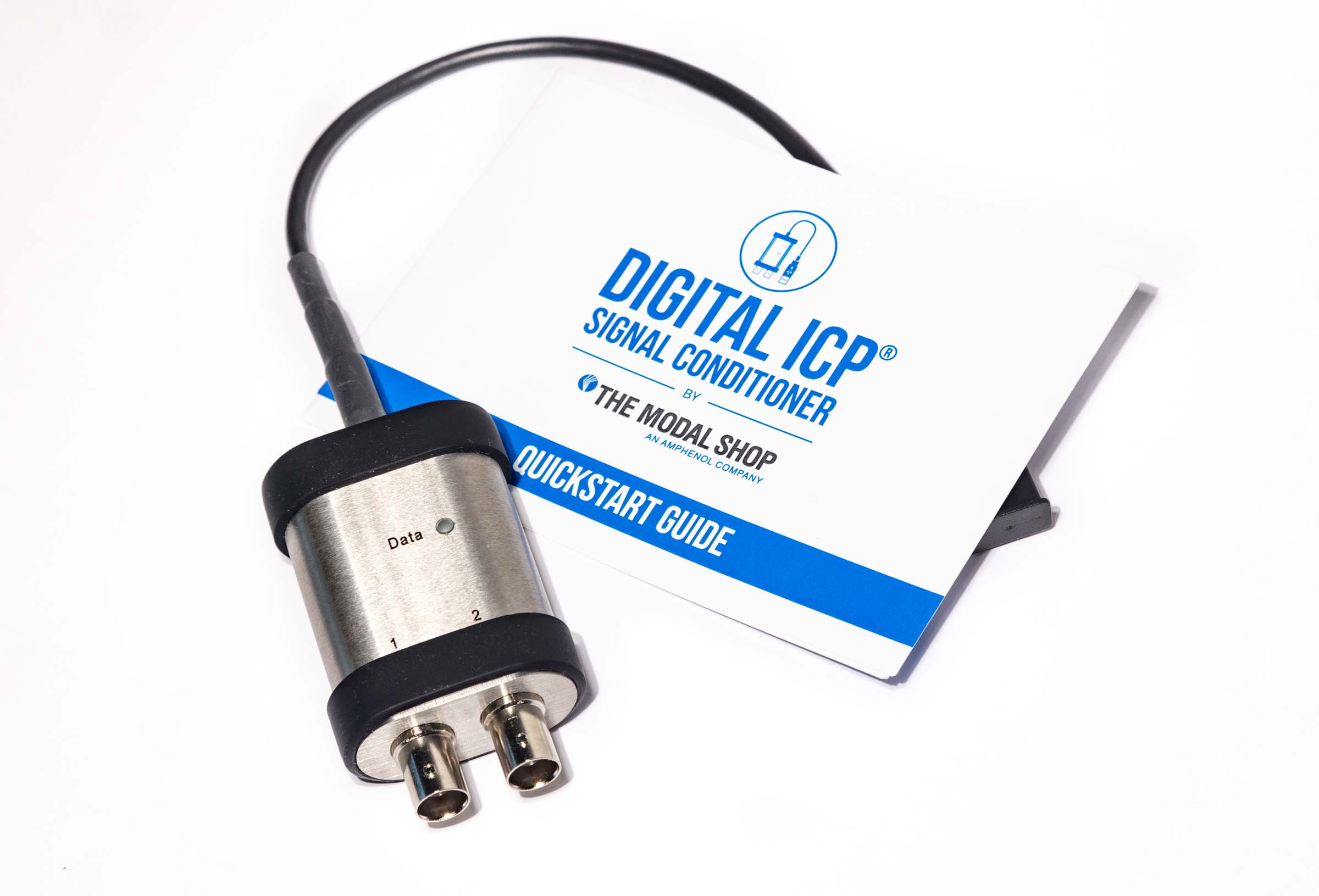

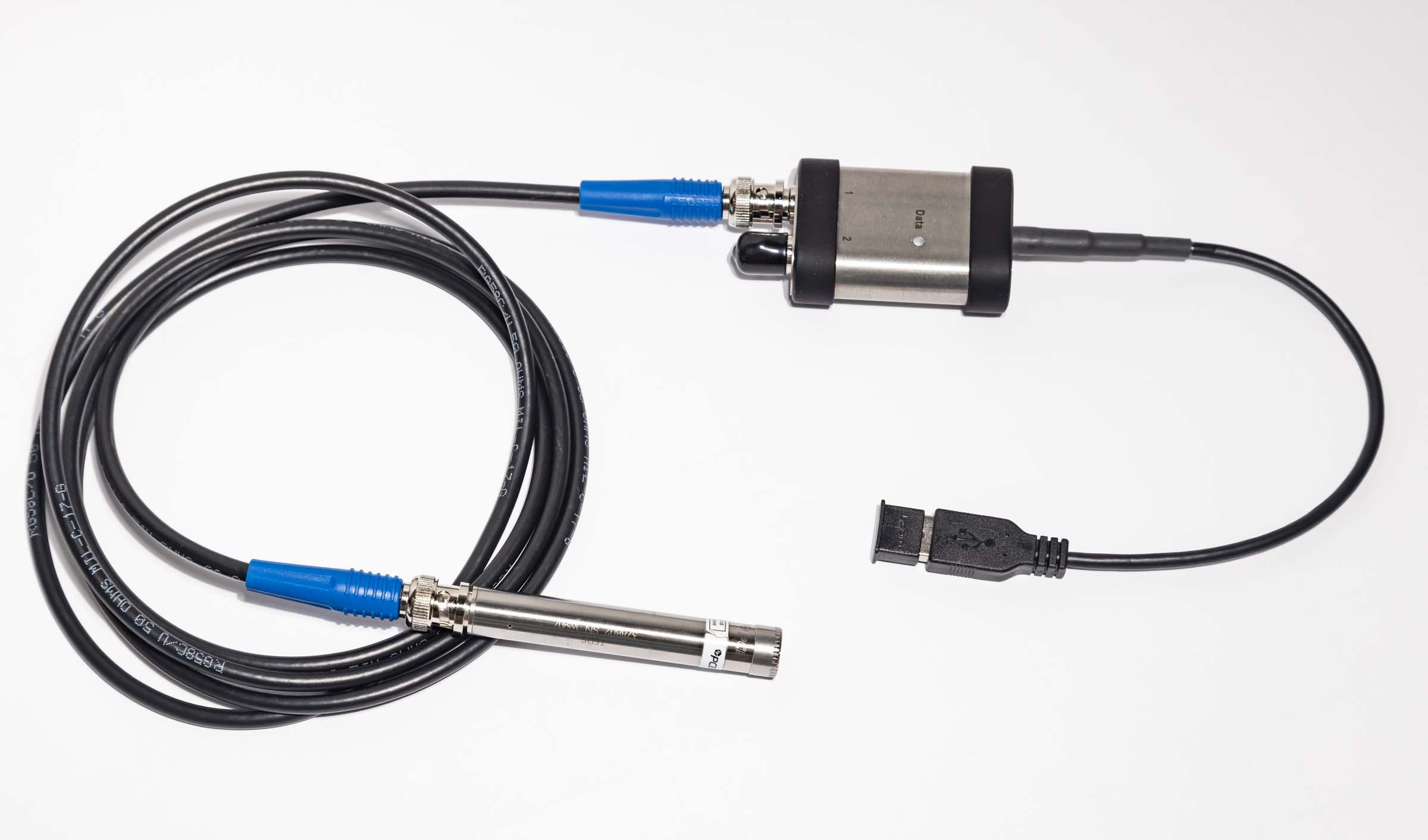

SIGNAL CONDITIONING IN YOUR POCKET A pocket-sized, dual-channel ICP® (IEPE) digital signal conditioner, Model 485B39 offers standard USB audio digital output. Plug & play signal conditioning makes for quick setup and intuitive functionality without the need for driver installation. The 485B39 powers ICP sensors through BNC connections while digitizing their signals over USB. Simply plug the unit into a USB port and view signals from accelerometers, microphones, hammers, or any other ICP-type sensor.

Description Specifications

Details and Description of the Digital ICP Digitizer

Existing third party Windows®, iOS®, Android™, macOS®, or Linux® software can be used to acquire time waveforms, frequency spectra, overall RMS measurements, and octave measurements or simply record data for further analysis. The small form factor, versatility, and powerful software options make this the perfect tool for taking measurements on-the-go. Whether you’re just learning about sensing; taking measurements on a daily basis; or simply want to add digital, portable functionality to your existing sensors; the 485B39 is a practical addition to your tool set.

TYPICAL APPLICATIONS

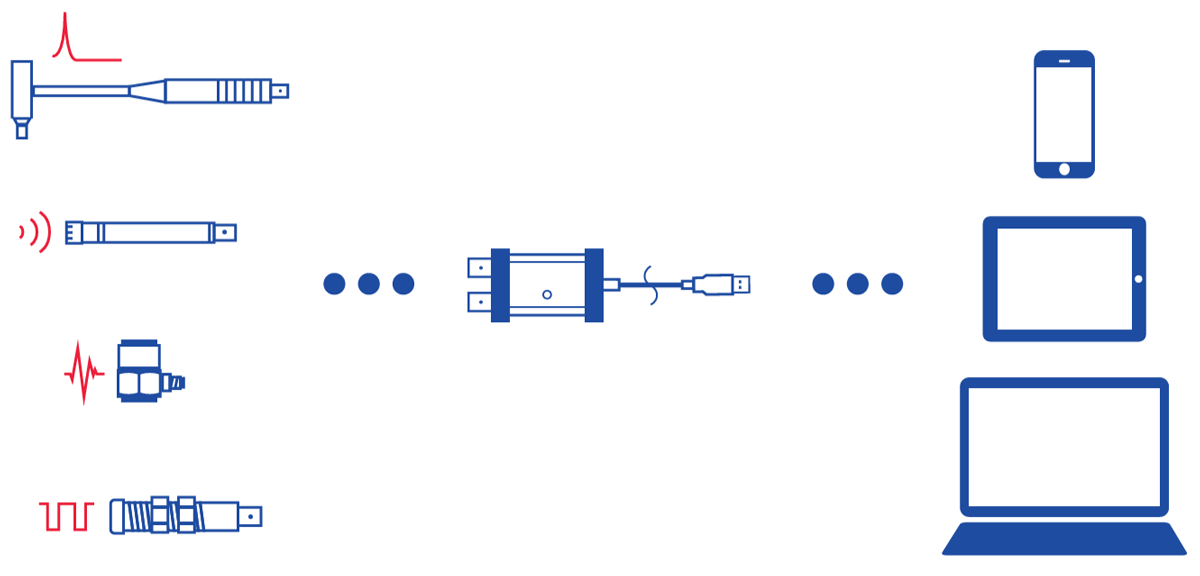

■ General dynamic signal digitizing
■ Binaural recordings
■ Sound & vibration measurements: isolation, transmissibility, correlation studies, and resonance testing
■ Industrial IoT applications
■ Educational laboratory experiments



Performance of the Digital ICP Digitizer | Model 485B39

Channel Count
2
Voltage Range (Nominal)
±10 V pk
ADC Resolution
24-bit
Frequency Range (± 5 %)
22.9 kHz
Digital Output Interface
USB Class 1 Audio

Hardware

Temperature Range (Operating)
14 °F to +176 °F (-10 °C to +80 °C)
Size (length x width x height)
60 mm x 39 mm x 19 mm
Weight - Housing Material
125g - Stainless Steel

Download

Product leaflet
Follow this link to download the full PCB Datasheet. See here
Information on technical characteristics is based on the latest information available at the time of publication.
