Mecalc MICROQ black tethered
The MICROQ t (tethered) comes equipped with what we believe to be The Essentials. All MICROQ versions start with The Essentials, which include unrivaled signal conditioning quality, modular signal conditioning
and simplified power, synchronization and networking.
With Power over Ethernet, DC Power and two I/O modular channel slots, the MICROQ t supports almost any data acquisition application, at the speed and quality you need.
With Power over Ethernet, DC Power and two I/O modular channel slots, the MICROQ t supports almost any data acquisition application, at the speed and quality you need.
Product Full Description
The MICRO<b>Q t</b> (tethered) comes equipped with what we believe to be The Essentials. All MICRO<b>Q</b> versions start with The Essentials, which include unrivaled signal conditioning quality, modular signal conditioning, and simplified power, synchronization, and networking. <br><br>
With Power over Ethernet, DC Power and two I/O modular channel slots, the MICROQ t supports almost any data acquisition application, at the speed and quality you need.
The Essentials
Connected and adaptable
Accessible open data formats.
Intuitive interaction for setup and control on smart devices.
Inherent, high signal quality
24-bit
Calibration (including ISO/IEC 17025)
Modular signal conditioning
S-Port and X-Port for ATTOQ
The S-Port and X-Port (coming soon) support optional additional ATTOQs, increasing signal conditioning and measurement placement possibilities. Contact MECALC Technologies for more information about the ATTO Q.

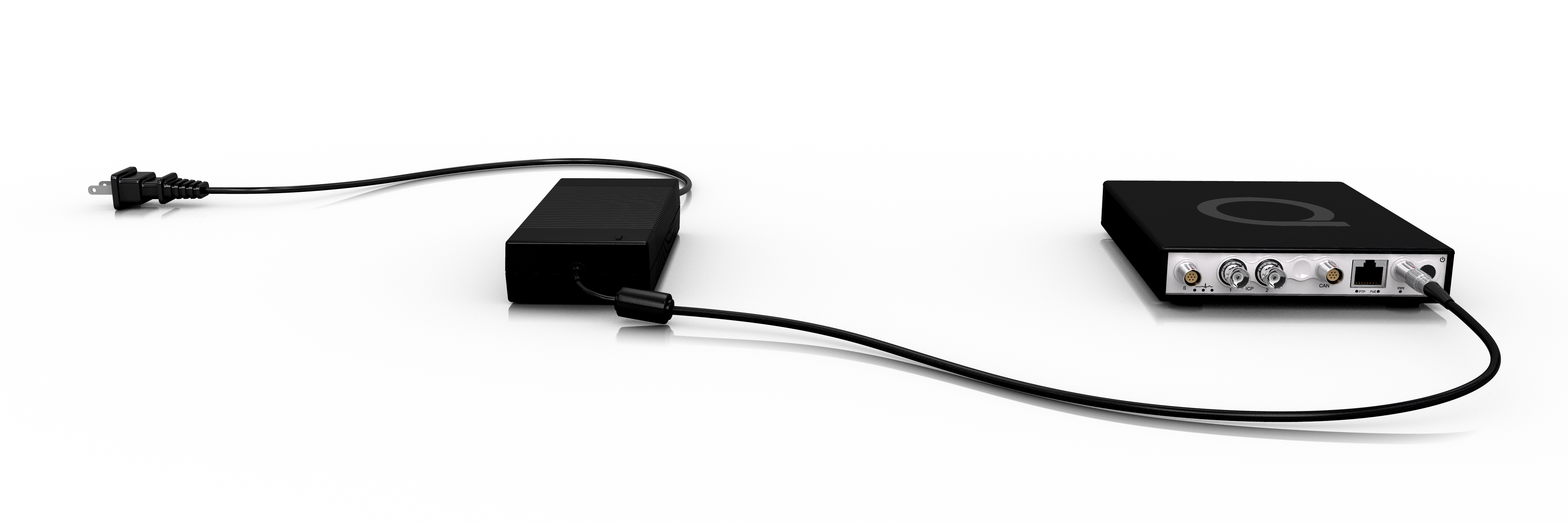

Simplified cabling: One cable for Power, Ethernet and Synchronization
PoE (Power over Ethernet)
Ethernet: 1000BASE-T | Data transfer at 45 MB/s
PTP (Precision Time Protocol)
Synchronization over PTP IEEE (1588-2008) with other QuantusSeries / PTP compatible devices
DC Power
10 - 30 VDC | For automotive power or a standard power adapter.
Rugged
Machined from aluminium
Conduction cooled
Closed chassis with no internal airflow
Shock and vibration tested

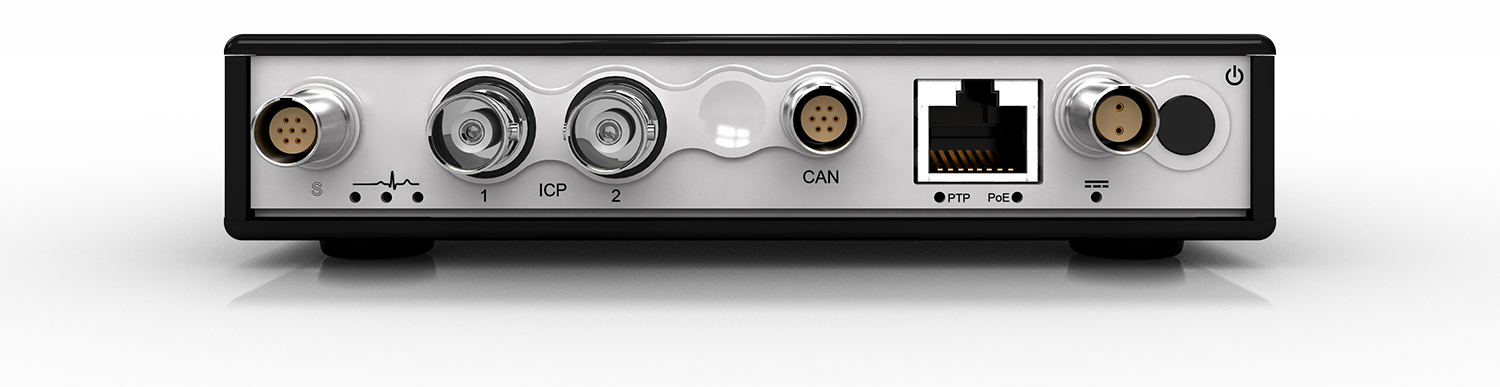

Built-in Channels
2 ICP® channels (BNC connectors)
CAN / CAN FD
Information on technical characteristics is based on the latest information available at the time of publication.
