RackMount

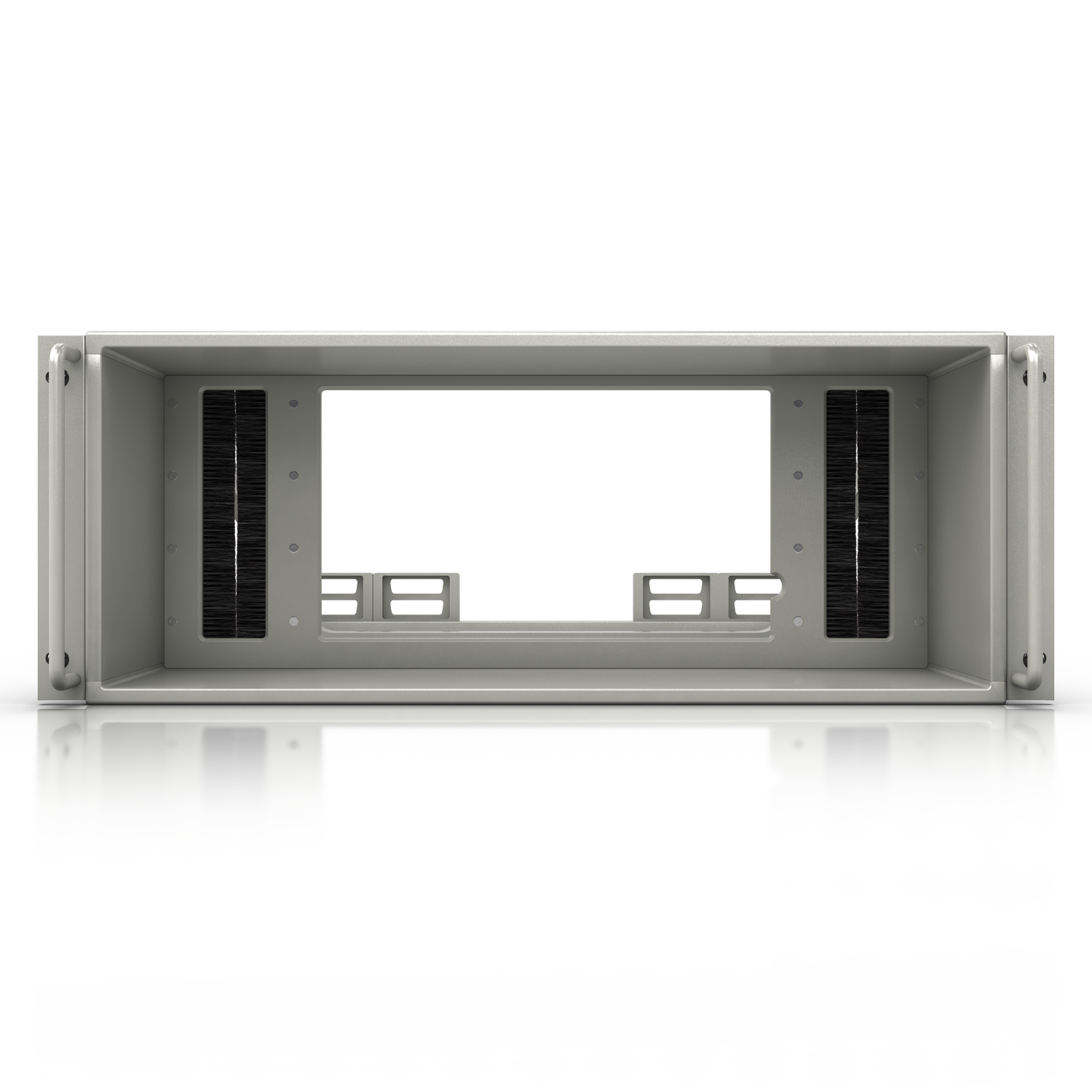

The RackMount is a compact, machined from aluminium Rack Mounting Kits which house 2, 3, 4, 6 and 10-slot DECAQ chassis.

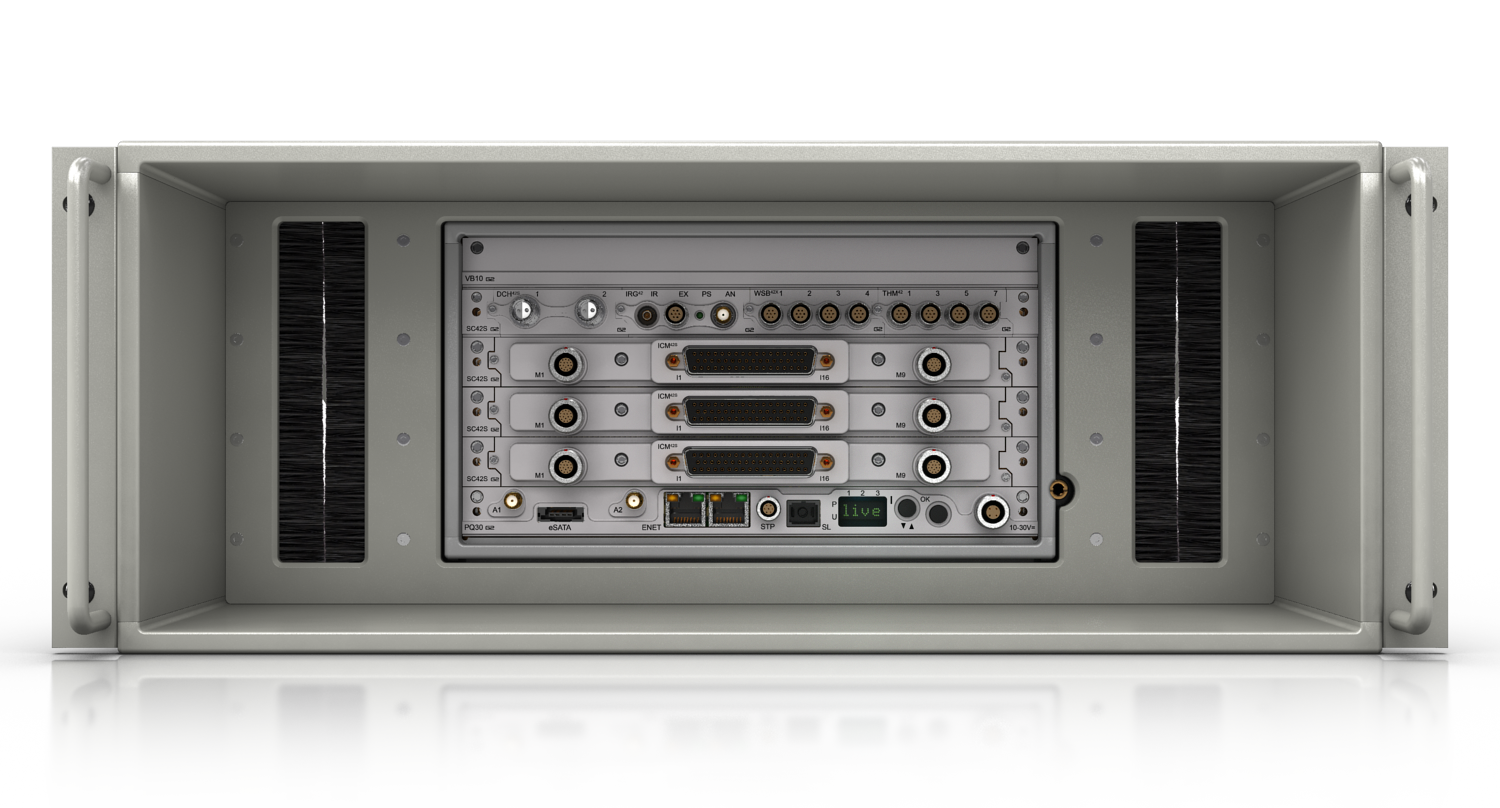

The chassis has specifically been recessed in each Mounting Kit to ensure that all cables are contained behind the rack’s front face. These cables can then be routed to the left and right sides of the chassis. At the rear, a horizontal brace provides a mounting point for cable connector flanges should this be required.
Description Specifications

Product Full Description

The RackMount is a compact, machined from aluminium Rack Mounting Kits which house 2, 3, 4, 6 and 10-slot DECAQ chassis.

The chassis has specifically been recessed in each Mounting Kit to ensure that all cables are contained behind the rack’s front face. These cables can then be routed to the left and right sides of the chassis. At the rear, a horizontal brace provides a mounting point for cable connector flanges should this be required.

This is particularly useful in cases where a conversion of connector types is required between those used by the DECAQ and those used by the testing facility. The sides and rear of the Mounting Kit have been left open to allow air to enter from the bottom of the rack to properly cool each chassis.

Specifications

RM-DQ02-04 - 19 " RackMount Kit for DECAQ 02 | 03 | 04

3U 19 " RackMount, 477 mm (19 ") depth, machined aluminium
DECAQ set back is adjustable and designed to ensure that all cables be contained behind the rack's front face.
Easy cable management with brush pass-throughs on the left and right sides and mounting points in the rear.

RM-DQ06 - 19 " RackMount Kit for DECAQ 06

4U 19 " RackMount, 557 mm (22 ") depth, machined aluminium
DECAQ set back is adjustable and designed to ensure that all cables be contained behind the rack's front face.
Easy cable management with brush pass-throughs on the left and right sides and mounting points in the rear.

RM-DQ10 - 19 " RackMount Kit for DECAQ 10

6U 19 " RackMount, 557 mm (22 ") depth, machined aluminium
DECAQ set back is adjustable and designed to ensure that all cables be contained behind the rack's front face.
Easy cable management with brush pass-throughs on the left and right sides and mounting points in the rear.
Information on technical characteristics is based on the latest information available at the time of publication.
